Multi Axle Hydraulic Modular Trailer for Sale

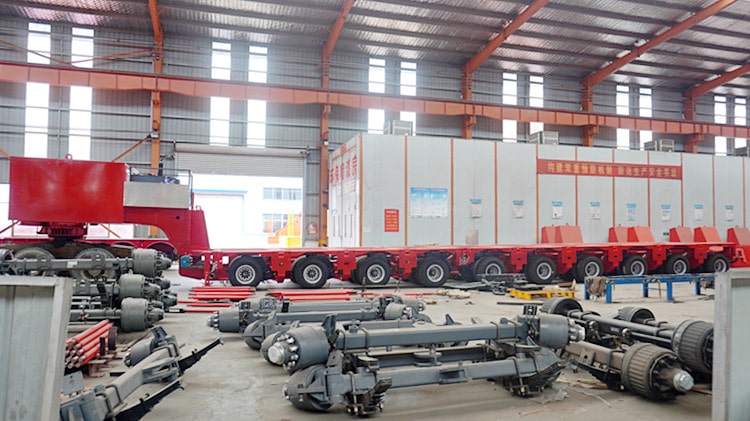

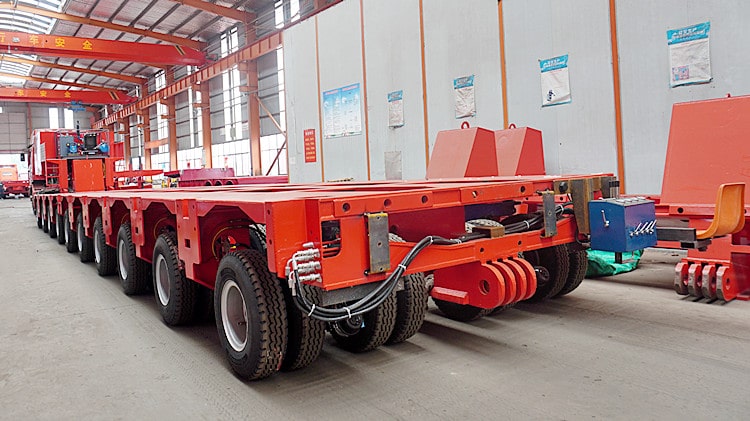

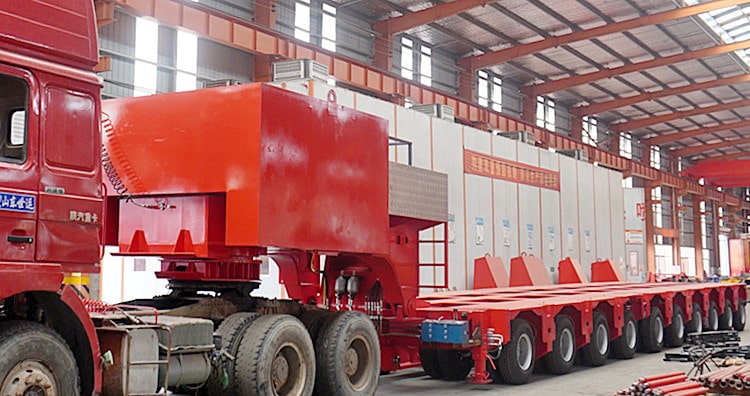

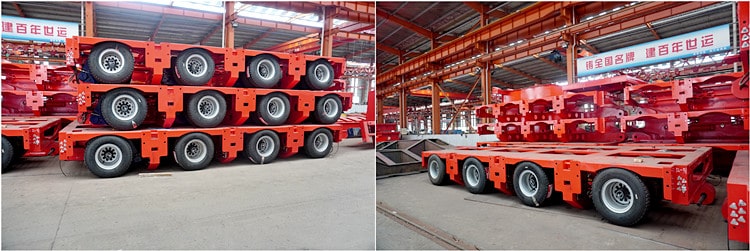

The Multi Axle Hydraulic Modular Trailer is mainly sold in Southeast Asia. This customer customized a multi-axle hydraulic modular trailer this time. Now the whole vehicle has been produced, and the factory can check it before it can be shipped out of the factory. This time, the delivery time is a bit longer, and the customer has repeatedly confirmed when the multi axle hydraulic modular trailer can be shipped. After the completion of the factory, the sales immediately sent pictures and videos to the customers. The customers were very happy after seeing the photos and looked forward to receiving the multi axle hydraulic modular trailer as soon as possible.
Multi Axle Hydraulic Modular Trailer for Sale
For long distance road transport of oversized and abnormal load cargos, such as steel structure, power generator, transformer, gas turbine, steam turbines, windmill parts(wind blade, wind tower and wind nacelle), petroleum vessels. Widely used in construction, engineering, oil refinery and other related industries. Each hydraulic modular trailer module could be connected end by end(longitudinal combination) and side by side(latitudinal combination), to finish various tough and enormous transport job that mechanical suspension trailer(conventional) can not make it.
Hydraulic platform multi axle trailer is getting popular worldwide due to it can spread concentrated weight to each wheels via hydraulic system, it can maintain level of trailer and cargo when running on uneven road, also, it can protect road from damage caused by overload trailer.
The hydraulic multi axle trailer also can be connected with tow bar as full trailer and hydraulic gooseneck as semi trailer to adapt different uses.
ShiyunTrailers supplies different types of China hydraulic modular trailers: G3.0 is compatible with the Goldhofer trailer, S3.0 is compatible with the Scheuerle InterCombi hydraulic modular trailer, N3.0-2 is compatible with Nicolas MDED/MDE, C3.0 is compatible with Cometto module 51M.
Shiyun multi axle trailer has sold such hydraulic pendulum axle(suspension) trailers to the US, Brazil, Chile, Poland, New Zealand, Malaysia, Indonesia, Kenya and other up to 40 countries all over the world.
Multi Axle Hydraulic Modular Trailer for Sale
Adopt world-class parts like Kohler diesel, Bondiolo & Pavesi valve.
High tensile steel mainframe.
All wheels are steerable automatically or manually.
Hydraulic axle(suspension) adapt uneven road condition.
Platform height is adjustable.
Lifting cylinder makes the trailer automatically responds to tough road conditions.
Safety valve in the hydraulic circuit.
Brake air tank ensures immediate brake.
Pendular axle and suspension easy for maintenance.
Pneumatic and hydraulic quick coupling.
Modules connecting pin adopts hydraulic cylinder makes longitudinal coupling fast.
The dual-circuit hydraulic system guarantees a safe work condition.
End by end combination and side by side combination of each module are available.
Small turning radius, 55° steering angle with hydraulic gooseneck.
Multi Axle Hydraulic Modular Trailer for Sale
A self-propelled multi axle trailer hydraulic modular trailer or sometimes self-propelled modular trailer (SPMT) is a platform vehicle with a large array of wheels. SPMTs are used for transporting massive objects such as large bridge sections, oil refining equipment, cranes, motors, spacecraft and other objects that are too big or heavy for trucks. Trucks can however provide traction and braking for the SPMTs on inclines and descents.
SPMTs are used in many industry sectors worldwide such as the construction and oil industries, in the shipyard and offshore industry, for road transportation, on plant construction sites and even for moving oil platforms. They have begun to be used to replace bridge spans in the United States, Europe, Asia and more recently Canada.
A typical SPMT has a grid of computer-controlled axles, usually 2 axles across and 4–8 axles along.When two (or more) axles are placed in series, this is called an axle line. All axles are individually controllable, in order to evenly distribute weight and to steer accurately. Each axle can swivel through 270°, with some manufacturers offering up to a full 360° of motion. The axles are coordinated by the control system to allow the SPMT to turn, move sideways or even rotate in place. Some SPMTs allow the axles to telescope independently of each other so that the load can be kept flat and evenly distributed while moving over uneven terrain. Each axle can also contain a hydrostatic drive unit.
A hydraulic power pack can be attached to the SPMT to provide power for steering, suspension and drive functions. This power pack is driven by an internal combustion engine. A single power pack can drive a string of SPMTs. As SPMTs often carry the world's heaviest loads on wheeled vehicles, they are very slow, often moving at under one mile per hour while fully loaded. Some SPMTs are controlled by a worker with a hand-held control panel, while others have a driver cabin. Multiple SPMTs can be linked (lengthwise and side-by-side) to transport massive building-sized objects. The linked SPMTs can be controlled from a single control panel.
