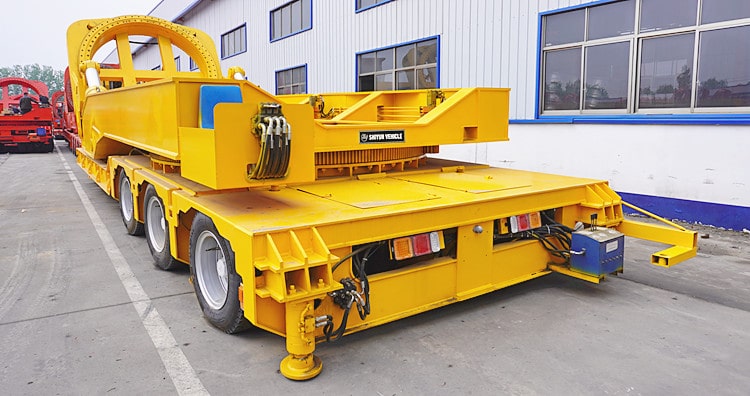

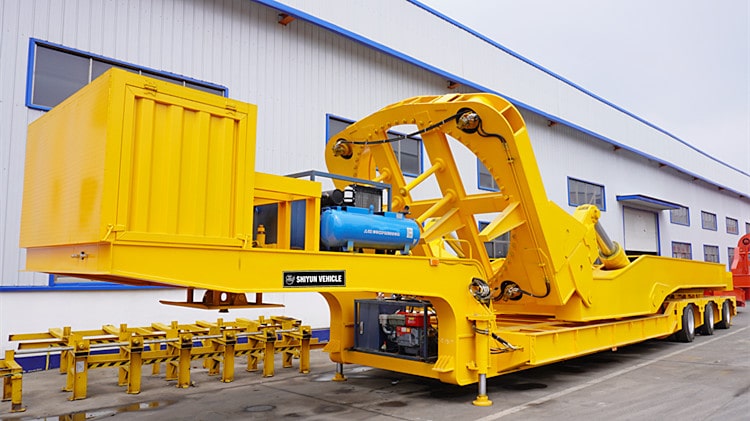

Wind Blade Trailer for Sale in Ho Chi Minh Vietnam

This customer from Vietnam contacted our company's salesperson last year. After learning about the product, he said that he would consider considering whether to place an order. During this period, our salesperson has been keeping in touch with customers, and will occasionally send customers some pictures of the delivery of the vane transporter and the feedback pictures that customers give us after receiving the semi-trailer. Once our salesperson sent a few feedback pictures to the customer, and the customer was surprised that he had seen one of the cars in Vietnam. So the salesman sent the customer the detailed information of the tubing trailer, and the customer only placed the order two months ago. Now this car will be shipped soon, and we hope that the customer will receive the wind blade trailer smoothly.

Wind Blade Trailer for Sale in Ho Chi Minh Vietnam

Lifting equipment safety operation manual-wind blade trailer

Vehicle and tooling inspection before loading

1. Check the hydraulic oil, tooling hydraulic pipelines and hydraulic outrigger pipelines of the car plate

2. Check the tire pressure

3. Check whether the engine oil and water of the tooling engine are normal

4. Check whether the hydraulic system is normal

5. Check whether the bolts of the tooling rotary turntable are loose to ensure reliable tightening

Wind Blade Transportation for Sale

Transfer process and safety precautions

1. Confirm whether the cargo (blade) is in good condition

2. Confirm whether the tooling tools are complete

3. The nut must be tightened when the blade is loaded

4. When the lifting equipment is in operation, watch hands under the tip of the blade and pay attention to intercepting passing vehicles and air barriers

5. When the car comes to park, the tip of the blade must be raised to more than 5 meters and avoid the owner's route

6. All hydraulic valves of the tooling should be closed after parking

7. There must be a special vehicle escort during the operation of the vehicle

Wind Blade Trailer Transportation

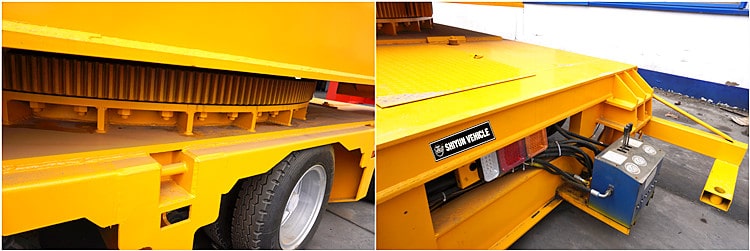

Lubrication and maintenance (tooling lubrication points)

The engine oil tank must be checked for the amount of oil daily, and the oil should be added in time to prevent the lack of oil from causing damage to the machine, and the hydraulic system has no oil leakage during work.

The upper and lower slewing ring raceways should be filled with grease regularly. When filling the grease, the slewing ring should be slowly rotated to make the grease filled evenly.

Pay attention to the operation of the slewing bearing in daily use. If you find abnormal noise, impact, or sudden increase in power, you should stop the machine immediately for inspection and troubleshoot.

Adjust the system pressure by adjusting the overflow valve on the hydraulic oil tank (the initial pressure is 16-18Mpa when lifting). The large and small gears of the slewing ring and the slewing mechanism must be greased to maintain lubrication and reduce dry wear.

The connecting bolts of the blade flange and the tooling mounting plate must be tightened.

The speed of the wind blade trailer vehicle should be controlled within 20km/hour in complex road conditions.
