Windmill Blade Transport Adapter for Sale in Vietnam

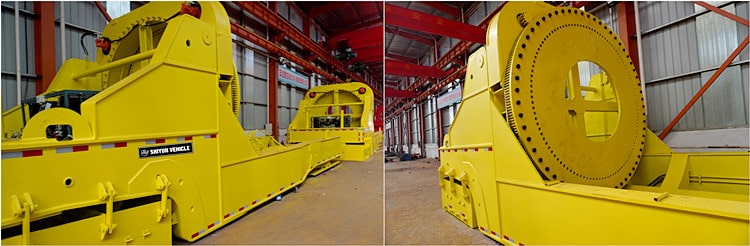

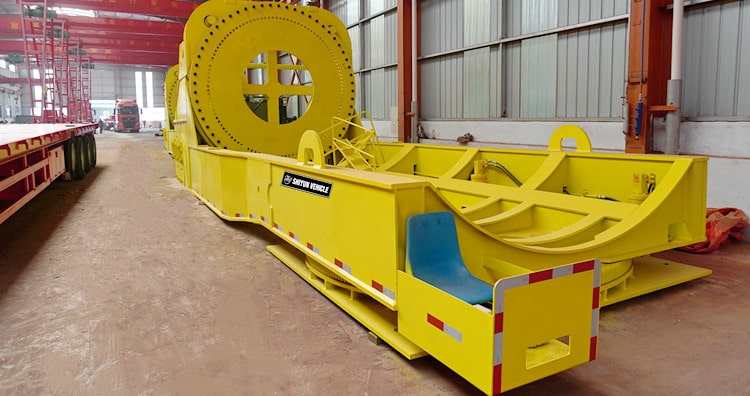

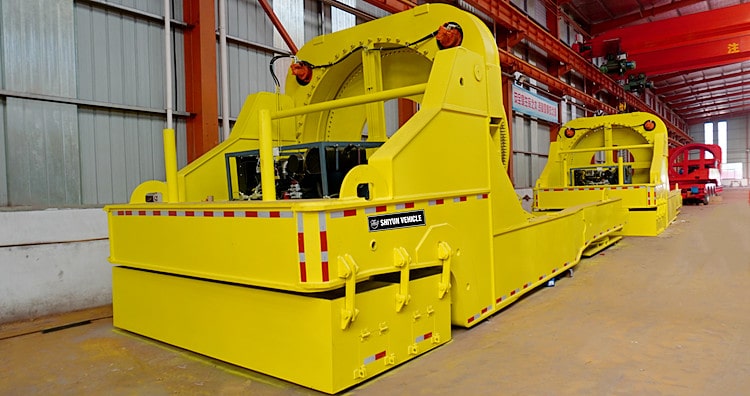

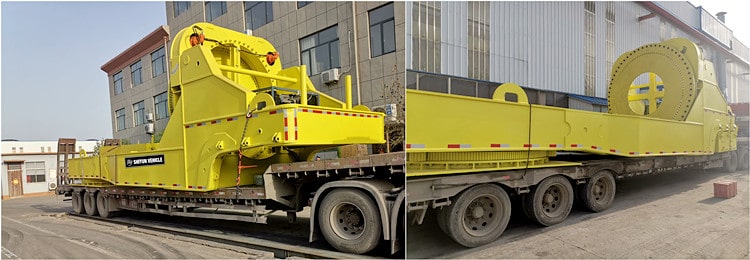

A customer from Vietnam customized two Shiyun blade adapters. This style of blade adapters was customized by a previous customer from Vietnam, and it was shipped at the end of last year. The customer said that he saw this blade adapters when he was on a local business trip. Because there was a logo on the blade adapters, the customer later searched the Internet for the Shiyun brand. At that time, our website’s on-duty customer service simply chatted with the customer, and the customer left his contact information. After our sales contacted the customer, the customer said that he also wanted this style of blade adapters, so we sold it to The customer sent two drawings, the customer re-determined the size of the blade adapters, after the factory was completed, sent feedback pictures to the sales, and the sales sent the pictures and videos of the blade adapters to the customer, which will be ready for shipment in a few days . The customer expressed excitement and nervousness, and worried that the blade adapters would be damaged during transportation. Our sales also said that they will always keep in touch with customers, and the company will try to solve any problems after customer feedback. Hope that customers receive the blade adapters smoothly!
Windmill Blade Transport Adapter for Sale in Vietnam
The blade shape of the wind turbine blade is designed according to the aerodynamic characteristics, and the thickness of the trailing edge of the blade is small; the bucket structure adopts the shell and double beam design type, and the blade well shell is thin. According to the characteristics of the shape and structure of the blade, the stability, reliability and safety of the blade structure should be ensured during transportation, hoisting and storage.
During transportation, each blade needs at least two support points, one at the root of the blade, and the other at about 2/3 of the length of the blade (pitch) or the length of the blade body (fixed blade), so that it can be divided equally. Deflection.
When supporting the main body of the blade, in order to evenly bear the load, it is necessary to use a support pad that is basically the same as the local wing shape. The radial length of the supporting pad is at least 500mm, the chord width is at least 500mm, and the thickness of the felt layer between the blade and the pad is at least 5mm.
The blade root support is supported at a position 100mm from the blade bow to the blue plate. At least 4 bolts are required for fixing.
The transport bracket should be firmly fixed to the carrier body, and no relative movement should occur during transport
The elongation from the main support of the blade is not allowed to exceed 1/3 of the length of the blade. When encountering special road conditions, the extension length of the blade tip can be temporarily extended appropriately, and it should be restored immediately when the conditions are met.
Windmill Blade Transport Adapter for Sale in Vietnam
When the blade is transported, the blade is not allowed to be placed horizontally, that is, the chord line at the maximum chord length of the blade is not allowed to be parallel to the ground, otherwise the blade strength should be affected
When the blade is removed from the transport vehicle and hoisted to the ground, the blade body must be adequately supported. Be sure to provide adequate support for the main body of the blade. When handling the blade, you should carefully protect the trailing edge of the blade to avoid local bending and local cracks.
If the blades are transported on the new route, in order to reduce transportation risks, the transporter needs to ascertain factors such as road conditions and the environmental conditions of the delivery location first, and then transport the blades after fully examining the transportation conditions.
It is not allowed to place non-fixed objects between the blades and the vehicle plate, so as to avoid moving objects to damage the blades during transportation
The leading edge of the blade should face down when hoisting.
When using nylon belt, the bandwidth should be at least 200mm
Windmill Blade Transport Adapter for Sale in Vietnam
When the blades are assembled and unloaded at the factory and hoisted on site, the contact parts of the hoisted blades should be wrapped with 10mm thick felt to protect the blade surface. Be careful when loading and unloading blades, and avoid blade collision damage; during the process of loading and unloading blades, avoid excessive force on the leaf sequence.
When bundling or hoisting, each blade needs to use two nylon straps, one is located at the cylindrical part of the root of the blade, and the other is located at about 2/3 of the length of the blade. At the same time, rear edge and front edge protection plates should be used to avoid local damage or small cracks.
During the hoisting process, when the blade needs to be rotated, there should be a wider trailing edge guard plate at the trailing edge of the blade, the width of which is not less than 500mm
When the wind speed is greater than 8m/s in the wind field, it is not allowed to lift the blades for installation. .4.7 During the hoisting process of the impeller, at least two control cables (non-metallic) should be used to make the blades leave the ground while being able to control their position well.
In the process of hoisting the blade, the blade must be hoisted slowly at a uniform speed, and it is not allowed to accelerate the hoisting of the blade, otherwise the blade lifting point will be subjected to overload and impact, which may cause damage to the blade structure.
For fixed-pitch blades, that is, blades that include a braking system, when hoisting, the blade cow carbon tube shaft is not allowed to be used as a lifting point. This will cause serious damage to the carbon tube and the shell at the slitting surface, and may cause damage. Dynamic system is destroyed.
When the blade is docked with Lunyi, when adjusting the blade to align with the bolt hole, it is not allowed to pad a rigid support under the blade, so as to avoid cutting the structural fibers and forming the origin of damage.
