SHIYUN VEHICLE is a professional manufacturer of Diesel Tanker, Diesel Tanker Trailer, 45000 Liters Diesel Tanker Trailer, Diesel Tanker for Sale for about 20 years, with rich experience and many manufacturing process advantages.

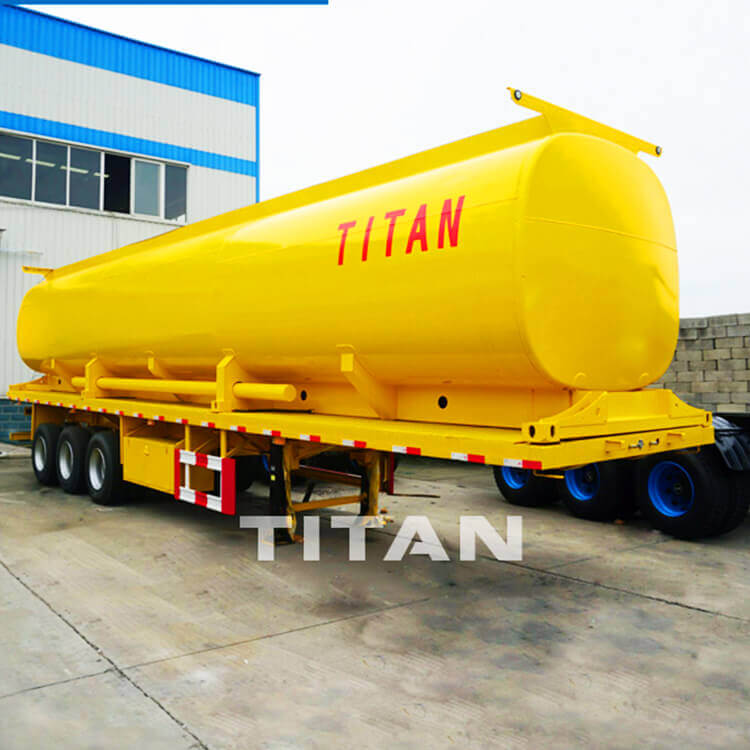

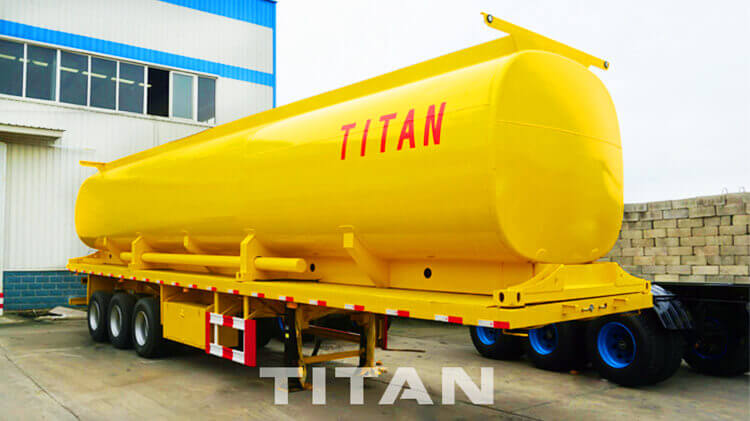

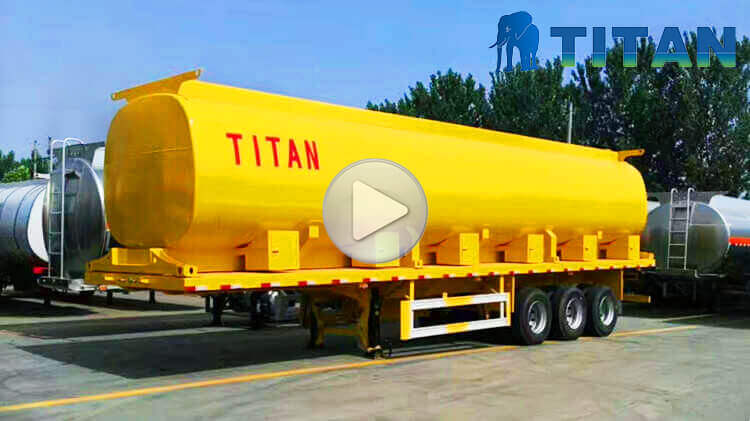

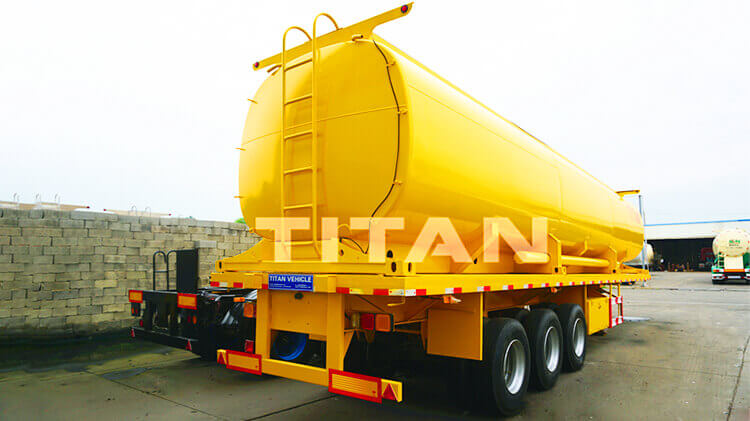

This 3 axle diesel tanker trailer is a semi-trailer used to transport liquids.
Its dimension is 12000*2500*3900mm. Volume is 45000L.
It is mainly used for transporting many different kinds of liquids, The liquid will generate huge tension and impact during transportation, so the tank must be strong enough.
Details of 3 Axle 45000 Liters Diesel Tanker Trailer for Sale Manufacture
Details of 3 Axle 45000 Liters Diesel Tanker Trailer for Sale Manufacture
Details of 3 Axle 45000 Liters Diesel Tanker Trailer for Sale Manufacture
1. Fuel outlet valve: We have a special design for the fuel outlet valve, which can better guarantee that when we dismantle the joint, there will be no fuel leakage. The internal structure is more in line with fluid mechanics, and when there is a large flow of goods out, the internal pressure can be balanced.
2. Subsea valve: The subsea valve is usually installed at the bottom of the tank, usually, its role is in the fuel semi trailer after an accident, in order to prevent the transport of liquid fuel leakage, resulting in greater economic losses, once the accident, the subsea valve will automatically cut off the pipeline within 3 seconds to ensure the safety of the transported goods.

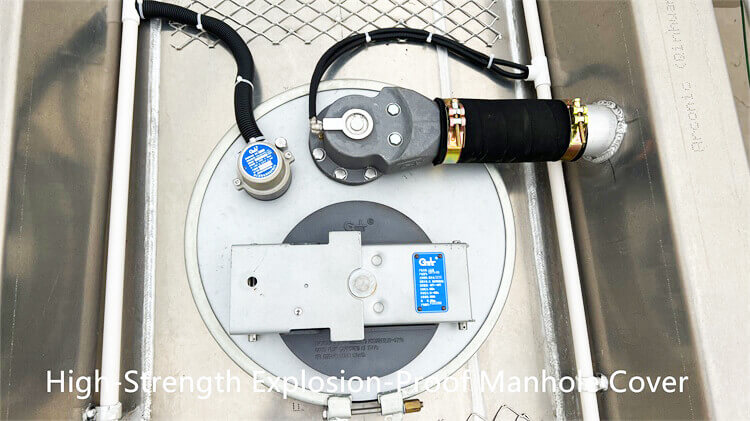

3. Safety valve: An important component of the manhole cover is the safety valve. The valve is used to automatically regulate the internal pressure of the tank to ensure the safety of the fuel semi trailer and also to reduce the volatilization of oil.
Model: Fuel Tanker Trailer
Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)
Volume: 45m3
Tank Body Material: 5mm carbon steel
End plate: 6mm carbon steel
Manhole Cover: Carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Axle: 3 axles, 13T
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: 2.0 or 3.5 inch
Suspension: Mechanical suspension
Leaf Spring: 90(w)mm*13(thickness)*10 layers
1. You can choose the transport method by bulk cargo or ro-ro ship for diesel tanker trailer.
2. After waxing the trailer, we will also add an extra layer of waterproof cloth to better protect the diesel tanker trailer
