SHIYUN VEHICLE is a professional manufacturer of lowbed truck, 40ft lowbed trailer, 3 axle lowbed, 3 axle lowbed trailer for about 20 years, with rich experience and many manufacturing process advantages.
This 3 axle 80ton lowbed truck dimension is 13000m*3000*1700mm.
This lowbed truck is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 60 tons.
3 Axle 80ton Lowbed Truck for Sale Price in Rwanda MICD
3 Axle 80ton Lowbed Truck for Sale Price in Rwanda MICD
1. This 3 axle lowbed truck body has a low center of gravity and is very stable when carrying goods, ensuring that there will be no problems during the transportation of goods.

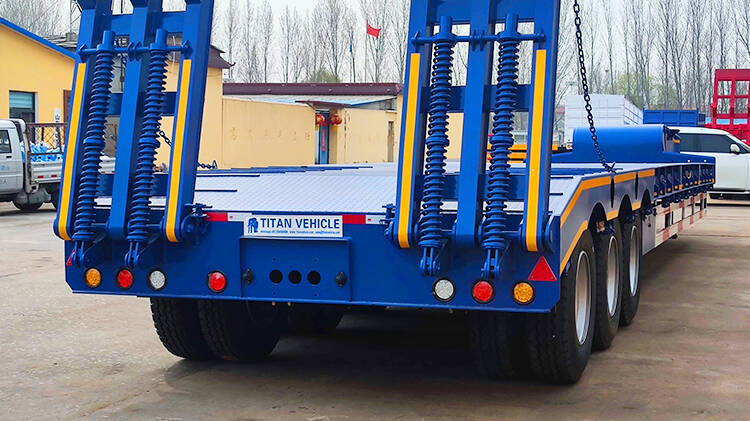

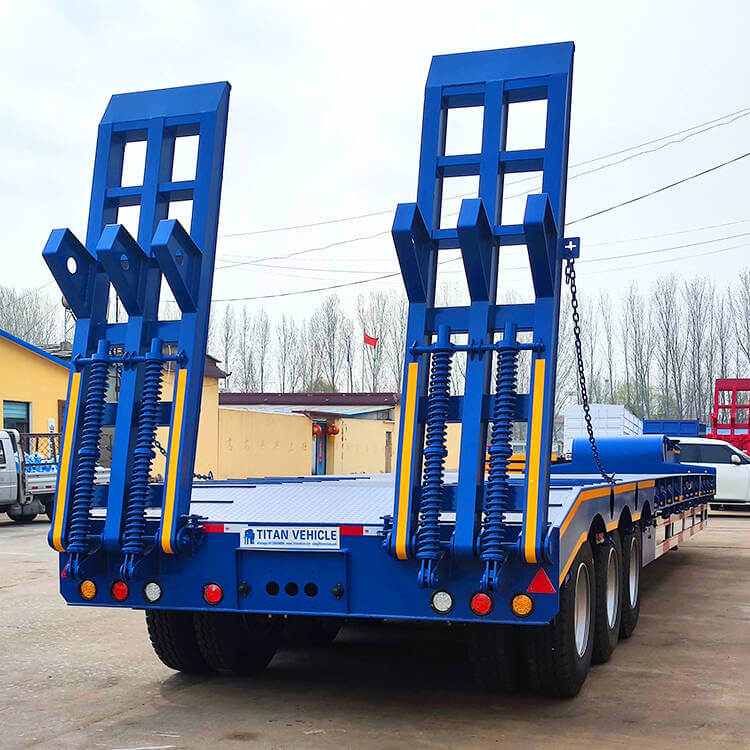

2. The loading ramp has two optional spring ramps and hydraulic ramps, and additional reinforcements have been made inside the steel to make it have a higher load-bearing capacity and will not deform when handling heavy equipment.
3. The height of the lowbed truck body itself is low, and when transporting heavy goods, it can be transported at a super high level. The number of trailers can be further expanded.
Model: 3 Axle 80ton Lowbed Truck
Dimension: 13000*3000*1700mm（depends on final design）
Capacity: 60T-120T

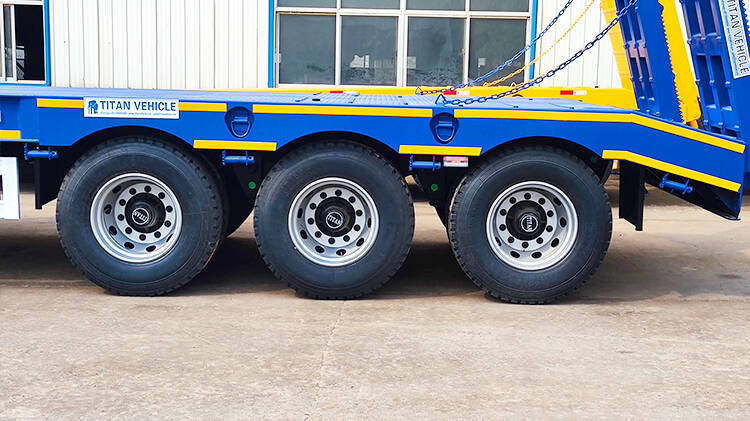

Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
Spring: 10pcs,16mm thick, 900mm wide
Can be ransported by bulk cargo or ro-ro ship for container trailer.
After waxing the trailer, we will also add an extra layer of waterproof cloth to better protect the 3 axle 80ton lowbed truck.
