TITAN VEHICLE is a professional manufacture have high quality flatbed trailer, 4 axle trialer. 48 ft flat bed trailer for sale for about 20 years which have rich experience.

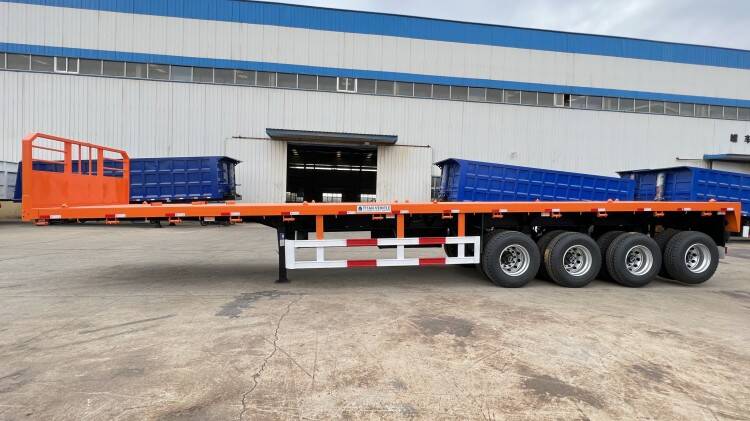

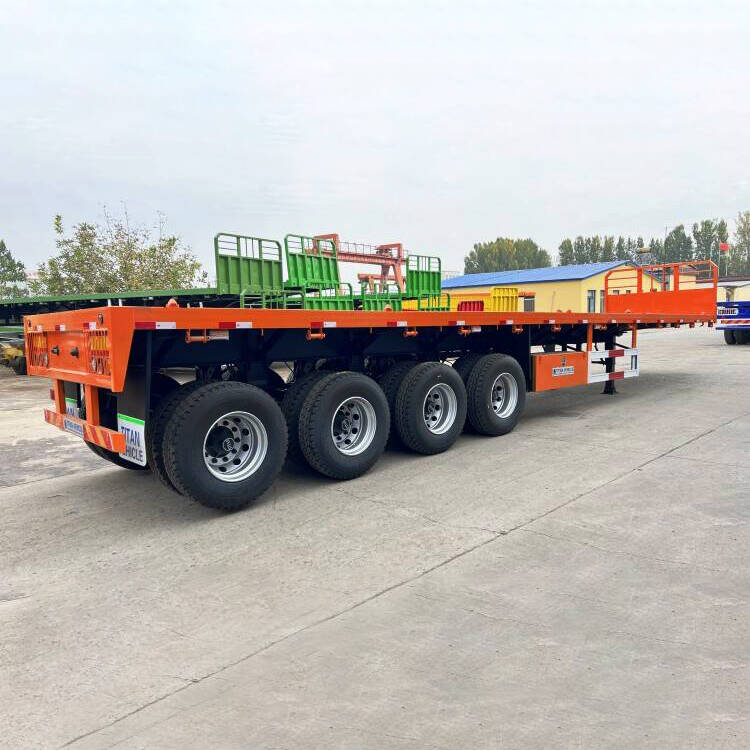

48ft 4 axle trailer. Its dimension is 13500m*2500mm*1530mm. A 40HQ container can hold 2 trailers a time.
Each vehicles are equipped with 12 high-quality twist locks, so it can be used to transport various sizes of containers. It can also be used to transport many other goods which are easy to be fixed, such as bagged cargo and metal etc. This model can bear up to 100 tons.

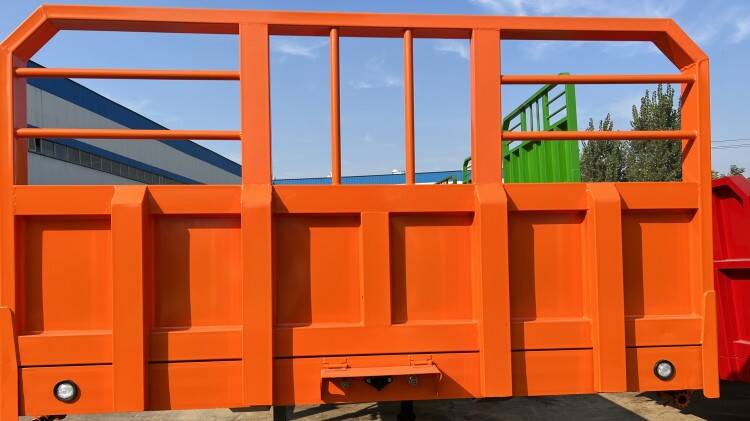

Details of4 Axle 48 Ft Flatbed Trailer for Sale Price in Zimbabwe
Details of4 Axle 48 Ft Flatbed Trailer for Sale Price in Zimbabwe
Details of4 Axle 48 Ft Flatbed Trailer for Sale Price in Zimbabwe
Details of4 Axle 48 Ft Flatbed Trailer for Sale Price in Zimbabwe

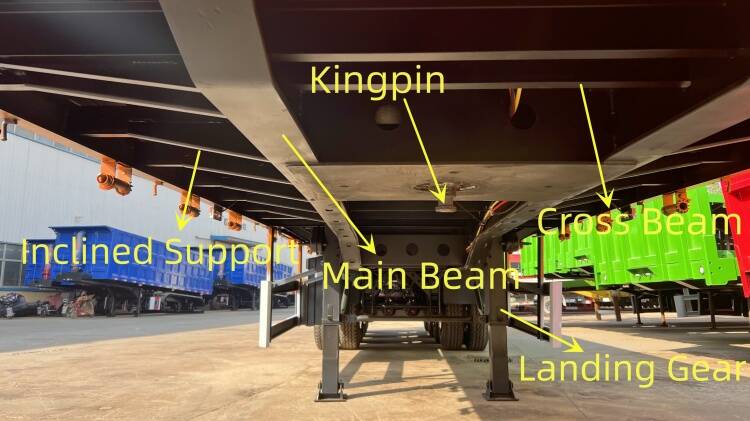

1. A total of 6 additional auxiliary beams will be added on both sides of two main beams, which are more than those on other manufacturers’ 4 axle trailer, ensuring the stability of the platform, and also greatly increase its load-bearing capacity.
2. For the suspension, we can provide two options of mechanical suspension and air suspension. The thickness of the suspension is 8 mm. In addition, we use 7mm thick king pin for the suspension which is much larger in diameter than other factories.
3. The tires used by the 4 axle trailer are 12R22.5 vacuum tires. We have cooperated with this tire factory for many years, the quality is very trustworthy.
Model: 4 axle trailer
Dimension(mm): 13500x2500x1530mm
Loading capacity(ton): ≤100T
Axles: 4 axles, 13T axle ( with 16T braking pads )
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension/ Air suspension
Platform: 3mm-thick checkered HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm,, Height: 500mm
Side Beam: Q235 steel, 16mm channel steel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST, 2.0inch or 3.5inch
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
Landing Gear: Standard 28tons(double-speed) or JOST brand
1. Our 4 axle trailer can be ransported by container, bulk cargo or ro-ro ship for container trailer.

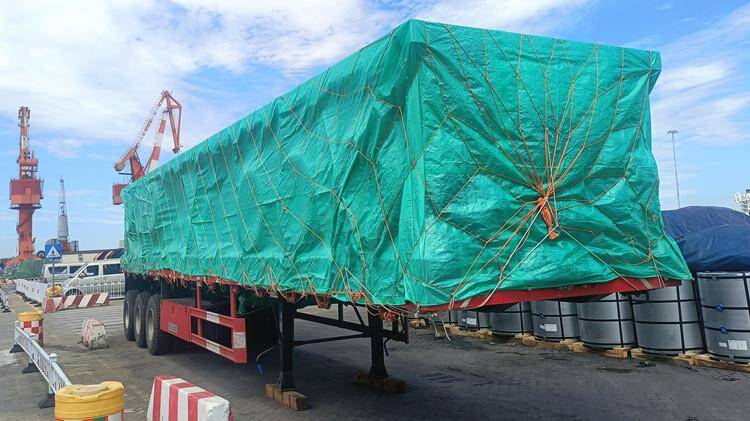

2. After waxing the trailer, we will also add an extra layer of waterproof cloth to better protect the product, so that can prevent the vehicle from being corroded by sea water in all directions.
