4 Axle Removable Gooseneck Trailer

Product Description：

Shiyun is a 4 Axle Removable Gooseneck Trailer that provides machinery for our agricultural, excavating, mining, and contractor clients. A double drop gooseneck trailer is often referred to as a "detach," because it has a gooseneck that detaches and moves away from the trailer's lower deck. This makes it simple for the detachable gooseneck drivers to secure your equipment and safely get it to the next destination.

Shiyun 4 Axle Removable Gooseneck Trailer for transport excavator and construction equipment, large machinery transportation. We can make the 2/3/4 axles gooseneck trailers, with the capacity of 60/80/100/120 ton.

To meet your transport needs and your local regulations, we can customize different configurations of Hydraulic removable detachable gooseneck lowboy for you.

4 Axle Removable Gooseneck Trailer for Sale In Namibia

80 Ton Lowboy Gooseneck Trailer for Sale Price Manufacturer

Details of 4 Axle Lowboy Gooseneck Trailer for Sale

Specification：

Loading capacity(T): 50-150T

Axle: 4 axle 13T/16T, FUWA / BPW / Shiyun Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam:

Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

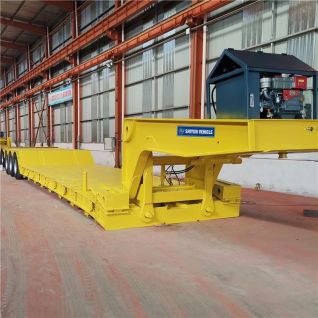

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for overseas markets)

Voltage: 24V

Toolbox: 1 set

Painting: Polyurethane paint, with long service life, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in a RORO or 40HQ container

Advantage:

1. The lower working platform height for the transport of high and voluminous loads.

2. Shiyun lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made of high-strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.

5. The suspension ensures its have high loading capacity, and increases its capacity to twisting forces, shock, bump.

6. Degree of automation is high. And it also has high control procedures and alignment in connecting, Only one person can operate it.

7. Lower loading deck: when the hydraulic gooseneck is removed from the trailer body, the trailer bed can touch the ground, makes loading and unloading more safe and efficient.
