Transporting Wind Turbine Blades by Truck can lift the wind turbine blades, it usually transport the wind turbine blades to the top of the mountain.
In the wind power industry, Shiyun vehicle mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. Shiyun vehicle provide all types transportation solutions for the wide power industry use.

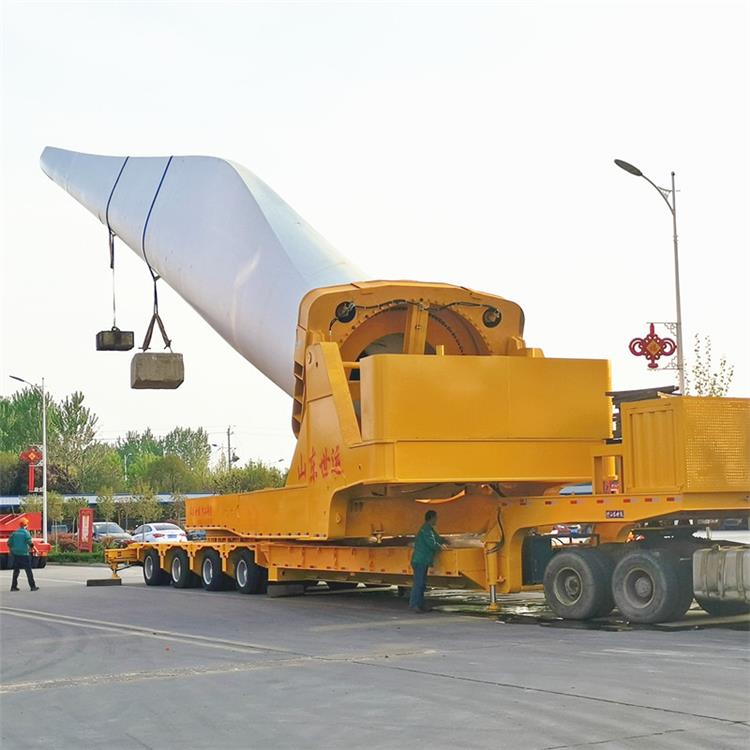

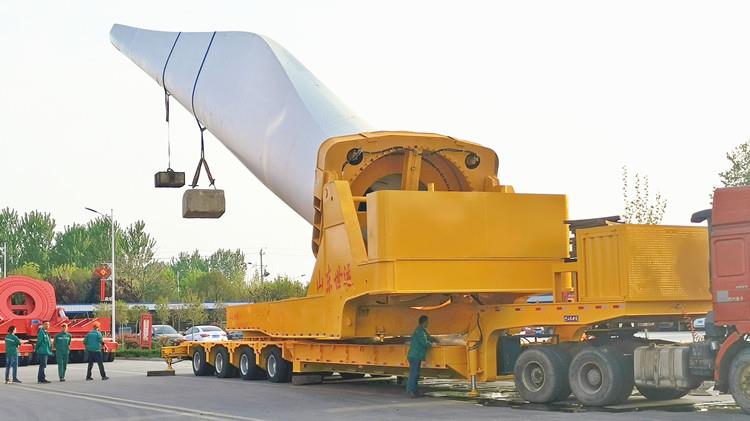

Comparing with extendable wind blade trailer ,The Wind Turbine Blades Adapter can raise, swing, and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind power blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.
Transporting Wind Turbine Blades by Truck Adapter - Shiyun Vehicle
Transporting Wind Turbine Blades by Truck Adapter - Shiyun Vehicle
Brand: Shiyun Transporting Wind Turbine Blades by Truck Adapter
Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m
Axle: 4 lines 8 axles
Tires: 32 units
Max rotation angle: 360°
Lifting cylinder: cylinder diameter 280mm Lift angle 0-55
Gooseneck with an active platform: 1m
Hydraulic station: 31KW four-cylinder diesel engine
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
The main components of the Wind Turbine Blades Adapter includes Rotation platform, Blade circle holder, Lifting cylinders, Operation seats and valves, Low bed trailers.
Rotation platform: The rotation platform is fixed on the Low bed trailer or Hydraulic modular trailer. It is fixed by some big bolts, and also we should weld it on the trailer platform to strength it.
Blade circle holder: One adapter could combine with different specification blade holders, and one holder could load Max. 7 specifications of blades.
Lifting cylinders: The adapter has one cylinder on each side (right and lift) to raise the wind blade
Operation seats and valves :The rotation and lifting movements is operated by manual work.
