75M Wind Blade Adaptor
75M Wind Blade Adaptor

75M Wind Blade Adaptor

100000 USD

Send Inquiry, Get Accurate Quotation



Wind Blade Adaptor for Wind Turbine Transportation can lift the wind turbine blades, it usually transport the wind turbine blades to the top of the mountain.

SKU: 75M Wind Blade Adaptor
MPN: MT940208
Brand: Shiyun

Product Description:

In the wind power industry, Shiyun vehicle mainly have wind power nacelle, wind turbine blades, wind tower section, etc. to complete industrial chain. Shiyun vehicle provide all types transportation solutions for the wide power industry use.

Comparing with extendable wind blade trailer ,The wind blade adaptor can raise, swing, and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.

This model is a separate windmill blade transport adaptor, you can match your own modular trailer

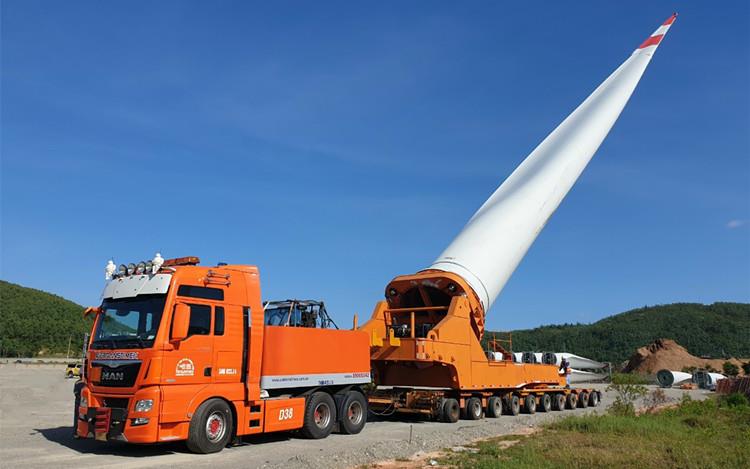

Wind Blade Adaptor for Wind Turbine Transportation - Shiyun Vehicle

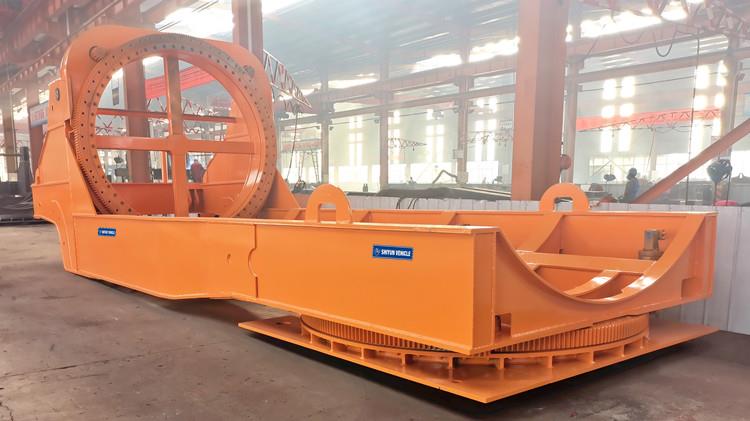

Wind Blade Adaptor for Wind Turbine Transportation - Shiyun Vehicle

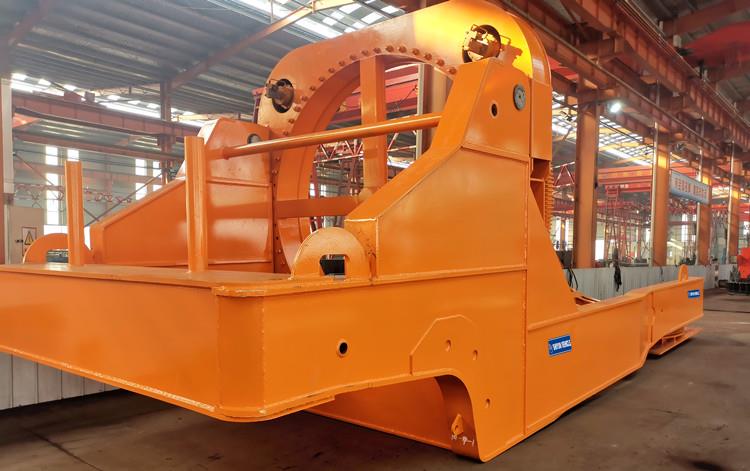

Wind Blade Adaptor for Wind Turbine Transportation - Shiyun Vehicle

Wind Blade Adaptor for Wind Turbine Transportation - Shiyun Vehicle

Wind Blade Adaptor for Wind Turbine Transportation - Shiyun Vehicle



Specification:

Brand: Shiyun Wind Blade Adaptor for Wind Turbine Transportation

Dimension: 11090mm*3700mm*5000mm

Applicable blade: 80m, 121-156 model windmill blades

Loading capacity: 23.5 Tons

Max rotation angle: 360°

Lifting cylinder: cylinder diameter 280mm Lift angle 0-55

Hydraulic station: 31KW four-cylinder diesel engine

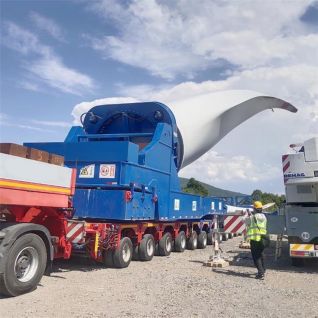

Blade Lifter | Windmill Blade Transport Adaptor for Sale



Features:

1. Max rotation angle of the rotor blade 360°

2. Max rotation angle of the platform 360°

3. Angle of inclination up to 60°

4. Radio remote control with display of wind speed, transverse gradient, blade position, ballast position

5. Windmill blade transport adaptor can combine with modular semi trailer and heavy duty low bed trailer

6. Self-balancing counterweight ensure the transport stability and safety

7. The maximum transport length of the blade is more than 75m
