Shiyun designs and produces wind tower trailer for hauling 10-200 Ton wind tower section
5 Line 10 Axle Wind Tower Transportation as an ECO and renewable energy, will be more and more popular in the world. The wind tower transportation generation construction field is also prosperous in proportion. In the wind power industry, we mainly have wind power nacelle, wind turbine blades, wind tower section to complete the industrial chain. Shiyun provides all types of transportation solutions for the wide power industry use.
There is no length limitation for transporting windmill tower sections. The length can be adjustable according to the wind tower length. The Axles are steering, it can be normal hydraulic steering or modular lifting steering.
There are two portions of this trailer: one is the adapter side with a gooseneck connect with the fifth wheel. The second one is the dolly trailer. Can transport oversized tanks diameters over than 5meters.

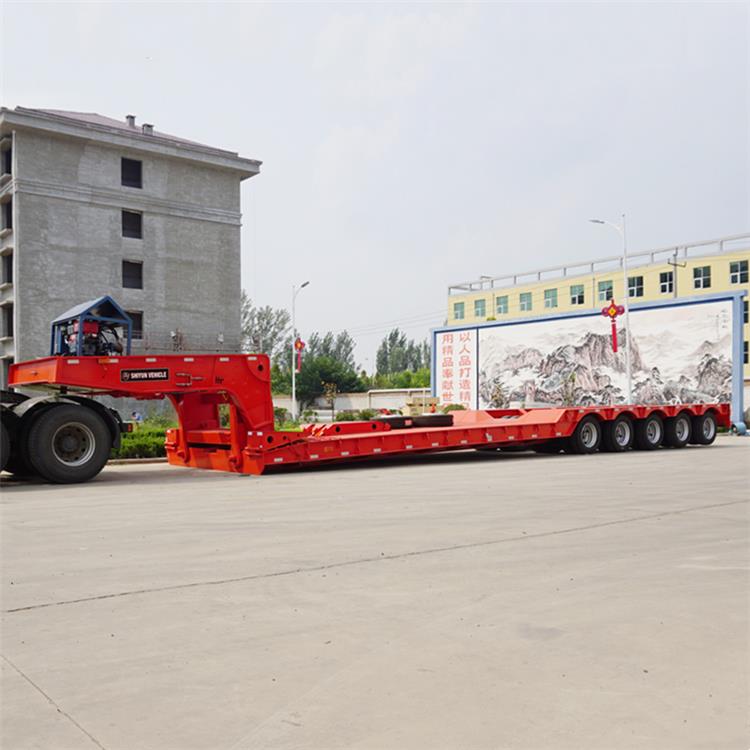

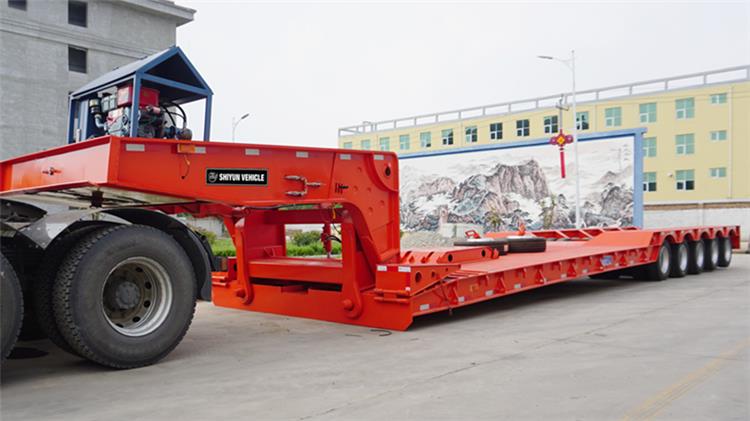

5 Line 10 Axle 150 Ton Wind Turbine Tower Transport Trailer for Sale - Shiyun Vehicle
Wind Tower Trailer for Sale with Best Price

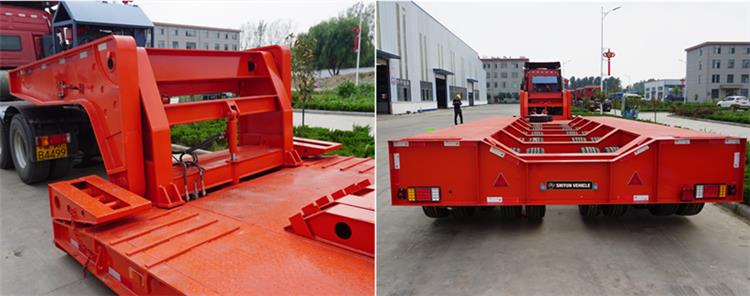

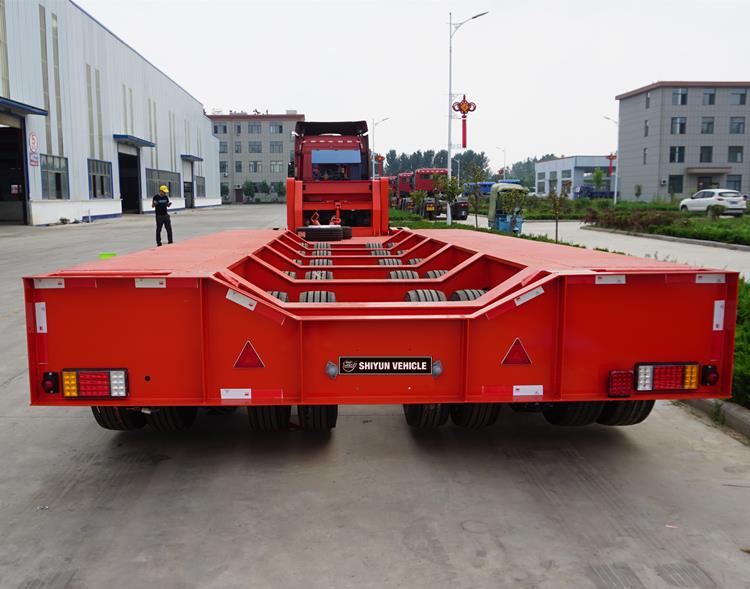

Details of Wind Tower Trailer
Platform: With radian for different diameters tank bodies
Gooseneck: Normal or hydraulic lifting gooseneck optional
Axles: 5 line 10 axle, hydraulic steering optional
Power station: for controlling the hydraulic systems
Braking system: Double air chamber, brake valve; ABS optional
Electrical: LED light, 7 ways,24V
Painting: Blasting and clean rust,1 coat of prime painting, 2 coat of finish paint
Platform weight: 15Tons
Tire: 9.00R20*24Pcs
Axle distance: 1500mm
Bogie distance: 580/1760mm
Tyre specification: 215/75R17.5
Rim specification: 6.00 (with reinforced rim)
Steering system: Hydro Mechanical steering
Suspension: Hydraulic suspension with three supports
Brake system: Dual line circuit
Loaded speed: 20km/h
Deadweight: 27000kg
Max. turn radius: 12410mm inside/ 43245mm outside
1. It is equal to a normal lowbed trailer with arc shape platform.
2. The width, length can be extended.
3. Axles can be normal or steering, modular hydraulic lifting lowbed trailer optional.
4. The platform height can be made very low. It can be 350mm-900mm from the ground.
5. Can transport oversized tanks diameters over than 5meters.
