3 Axle Wind Power Transport
3 Axle Wind Power Transport

3 Axle Wind Power Transport

145000 USD

Send Inquiry, Get Accurate Quotation

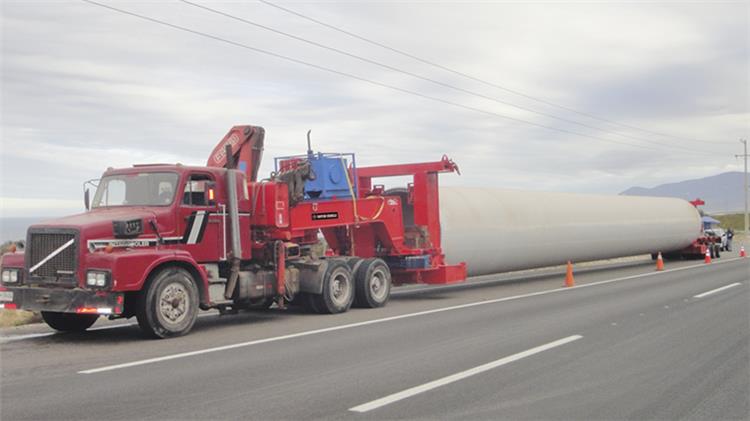

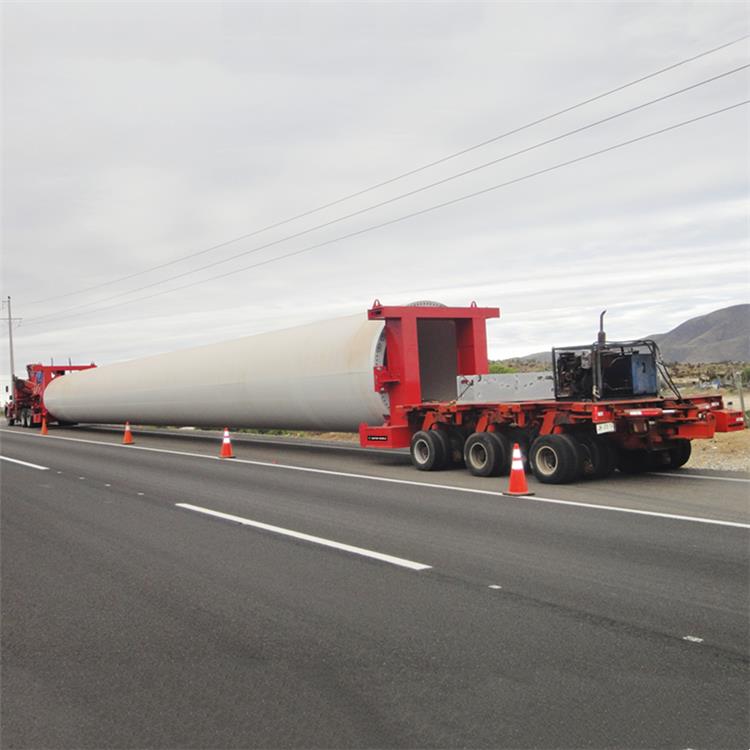

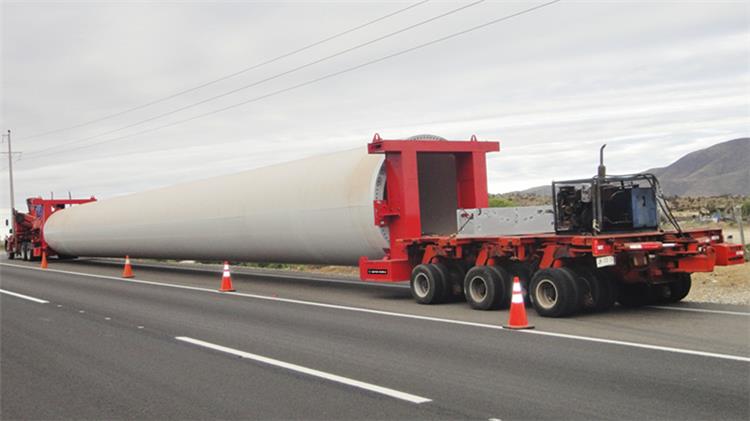

There are two portions of this trailer: one is the adapter side with a gooseneck connect with the fifth wheel. The second one is the dolly trailer. 3 Axle Wind Power Transport Can transport oversized tanks diameters over than 5meters.

SKU: 3 Axle Wind Power Transport
MPN: MT940411
Brand: SHIYUN

Product Description:

3 Axle Wind Power Transport as renewable energy, will be more and more popular in the world. The wind tower transportation generation construction field is also prosperous in proportion. In the wind power industry, we mainly have wind power nacelle, 3 axle transporting wind turbine towers, wind tower section to complete the industrial chain. Shiyun provides all types of transportation solutions for the wide power industry use.

There is no length limitation for transporting windmill tower sections. The length can be adjustable according to the wind tower length. The Axles are steering, it can be normal hydraulic steering or modular lifting steering.

There are two portions of this trailer: one is the adapter side with a gooseneck connect with the fifth wheel. The second one is the dolly trailer. Can transport oversized tanks diameters over than 5meters.

3 Axle Windmill Tower Sectioin Adapter for Sale In Vietnam

3 Axle Wind Power Transport for Sale In Vietnam ho chi minh

3 Axle Windmill Tower Sectioin Adapter for Sale

Tri Axle Wind Power Transport Trailer with Best Price



Specification´╝Ü

Platform: With radian for different diameters tank bodies

Gooseneck: Normal or hydraulic lifting gooseneck optional

Axles: 3 axle, hydraulic steering optional

Power station: for controlling the hydraulic systems

Braking system: Double air chamber, brake valve; ABS optional

Electrical: LED light, 7 ways,24V

Painting: Blasting and clean rust,1 coat of prime painting, 2 coats of finish paint

Platform weight: 15Tons

Tire: 9.00R20*24Pcs

Axle distance: 1500mm

Bogie distance: 580/1760mm

Tire specification: 215/75R17.5

Rim specification: 6.00 (with reinforced rim)

Steering system: Hydro-Mechanical steering

Suspension: Hydraulic suspension with three supports

Brake system: Dual-line circuit

Loaded speed: 20km/h

Deadweight: 27000kg

Max. turn radius: 12410mm inside/ 43245mm outside



Advantage:

1. It is equal to a normal lowbed trailer with arc shape platform.

2. The width, length can be extended.

3. Axles can be normal or steering, modular hydraulic lifting lowbed trailer optional.

4. The platform height can be made very low. It can be 350mm-900mm from the ground.

5. Can transport oversized tanks diameters over than 5meters.
