SHIYUN VEHICLE is a professional manufacture which have 3 axle trailer, 40 ft trailer, flatbed trailer for sale for about 20 years with rich experience.

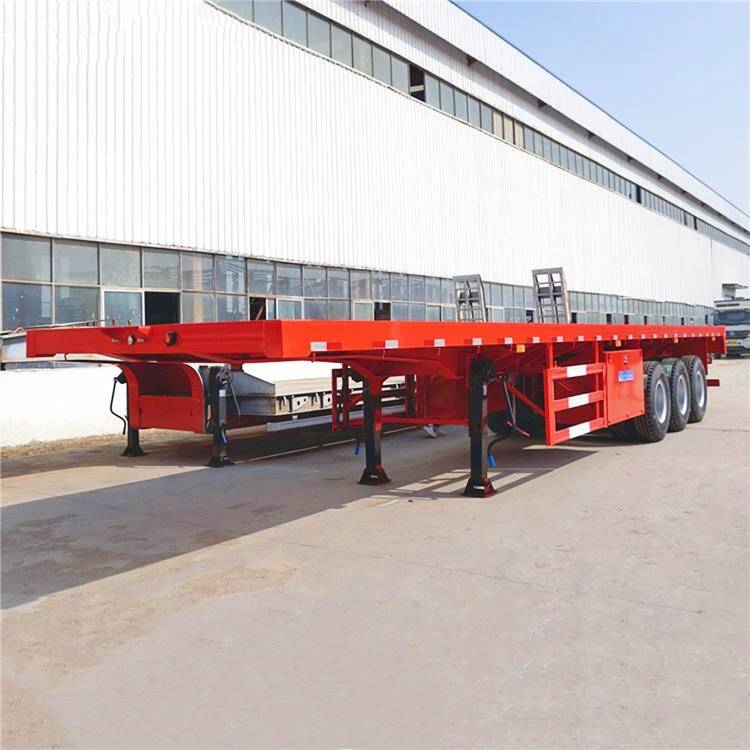

The size of this 40ft 3 tri axle trailer is 12500m*2500*1530mm. A 40HQ container can accommodate 2 trailers. Bulk can transport three vehicles at a time.
This model can bear up to 60-80ton.
Details of 40 ft trailer
Details of 3 Alxe Trailer
Details of 40 ft trailer
1. Our platform adopts thickened 3mm high-strength steel, which improves the service life and has higher bearing capacity. Checkered patterns are also added to the surface of the platform, which greatly increases the anti-slip and wear resistance of the platform.
2. The main beam of Titan flatbed trailer is made of Q345 high strength steel,who has more loading capacity.The service life will be more than 10 years.

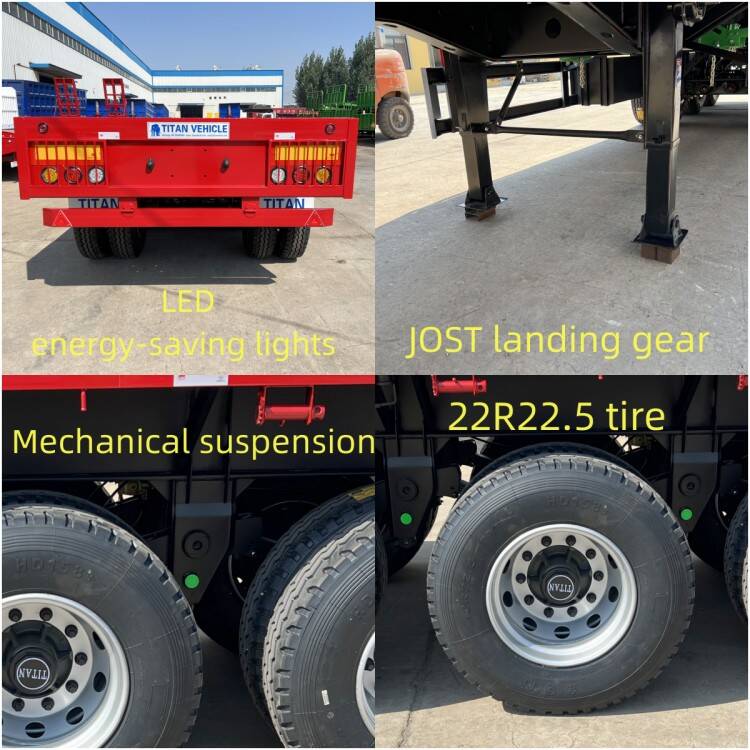

3. The tires used by the 3-axle flatbed semi-trailer are 12R22.5 vacuum tires. And our landing gear use very famous brands: JOST, which have better bearing capacity and service life.
Model: Tri axle flatbed trailer
Dimension(mm): 12500*2500*1530mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T axle with 16T braking pads
Tire: 12pcs, 12R22.5
Rim: 12pcs, 9.00-22.5
Suspension: Mechanical suspension/Air suspension
Platform: 3mm-thick checkered HSS plate
Main Beam: Q345B steel, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm,, Height: 500mm
Side Beam: Q235 steel, 16mm or 18mm steel channel
Twist Locks: 12 sets (lifting or screw type)
King Pin: JOST brand 2.0inch or 3.5inch
Landing Gear: Standard 28ton or JOST brand
Brake systerm: WABCO value
1. Can be ransported by container, bulk cargo or ro-ro ship for container trailer.

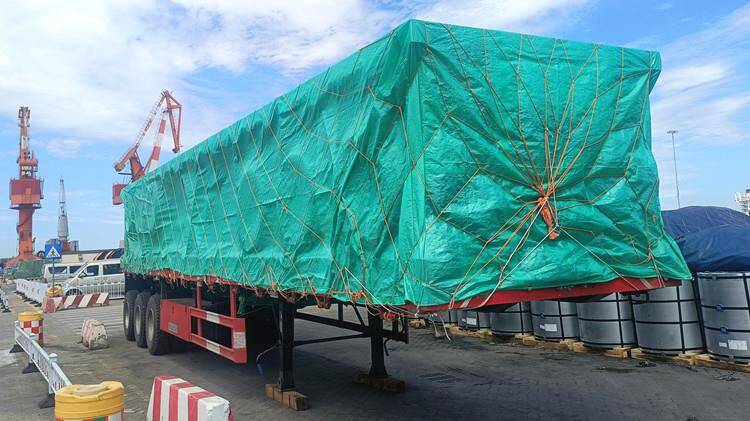

2. After waxing the trailer, we will also add an extra layer of waterproof cloth to better protect the product.
